Product Details:
|
| Dimension(L*W*H): | 8000*1500*3500mm | Power: | 12kw |
|---|---|---|---|
| Glass Thickness: | 12-50mm | Material: | Stainless Steel |
| Voltage: | 380V | Air Pressure: | 0.6-0.8Mpa |
| Max. Glass Size: | 2500*4000mm (can Be Larger Or Smaller According To The Requirements ) | Min. Glass Size: | 300*300mm |
| Insulating Glass Thickness: | 14~54mm | Sealing Width: | 6-24mm |
| Highlight: | Vertical Insulated Glass Sealing Machine,Sealant Spreading Insulated Glass Sealing Machine,Sealant Insulated Glass Sealing equipment |
||
Automatic Vertical Insulating Glass Sealing Robot for glass processing
An automatic insulating glass sealing robot is used for the second sealing procedure of the hollow glass. Silicone glue, polyurethane glue, or polysulfide glue are applied around the hollow glass to play the second sealing role and to maintain the stability of the structure.
Main feature
1.Automatic insulating glass sealing machine can coat much shaped glasses (triangle glass, hexagon glass, trapezoidal glass, arc glass, train glass, and so on), stepped glass
2.Insulting glass sealing machine can coat triple glass by one time
3.Hollow glass sealing machine works very well, the glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
4.The sealing machine has quality assurance, it adopts Japan YASKAWA servo motor and CPU, Siemens low-voltage electrical appliances.
Application
1.Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working.
2.Glass sealing machine adopt timing belt to keep smooth convey with accurate position.
3.Automatic Hollow glass sealing spreading machine adopts 8 servo motors.
4.Automatically measure glass size, glue depth, and glue speed with linear adjustment.
5.New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
6.Full automatic and high-efficiency machine, Automatically repair glass corners with beautiful surface, Smooth convey without scratch and pollution.
7.Single-function parts are equipped with manual functions, easy adjustment
Technical parameter
| Item. | Spec. |
| Applicable Industries | Manufacturing Plant, Home Use, Construction works |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location | Canada |
| Showroom Location | Canada |
| Condition | New |
| Machine Type | vertical glass glueing machine |
| Production Capacity | 100% |
| Place of Origin | China |
| Voltage | 380V-450V |
| Power | 13kw |
| Warranty | 2 years |
| Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support | |
| Key Selling Points | High-accuracy |
| Glass Thickness | 12~60mm |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | Pressure vessel, Motor, PLC |
| Product name | vertical insulating glass sealiing robot |
| Voltage | 380V or customized |
| Total Power | 13kw |
| Max glass size | 3500x2500mm |
| Min glass size | 300x180mm |
| Glass thickness | 12~60mm |
| Coating depth | 3~18mm |
| Aluminum frame width | 6~24mm |
| Coating speed | 5~40m/min |
| Transmission speed | 5~50m/min |

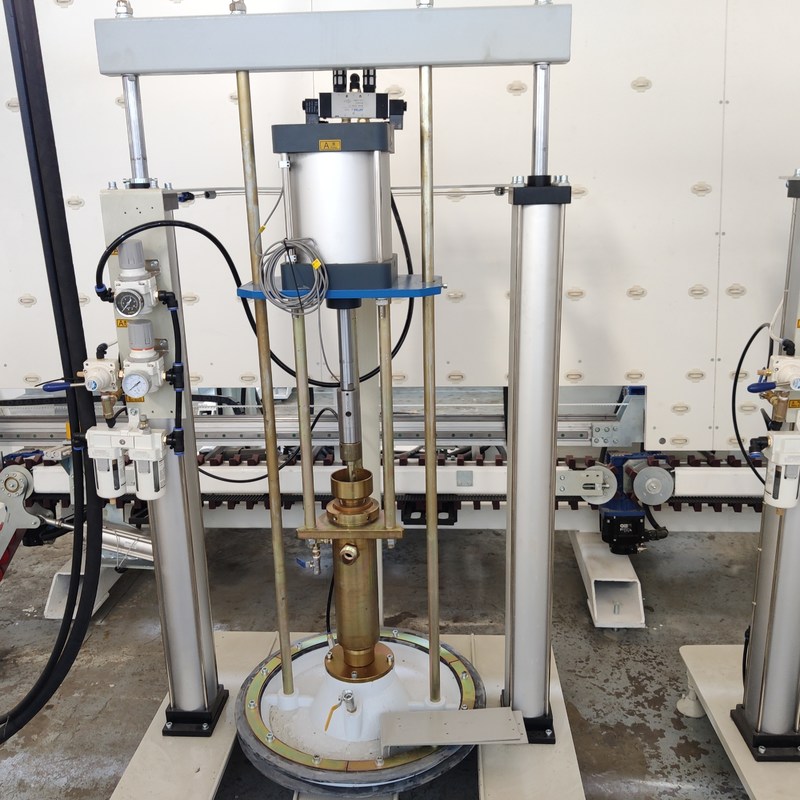

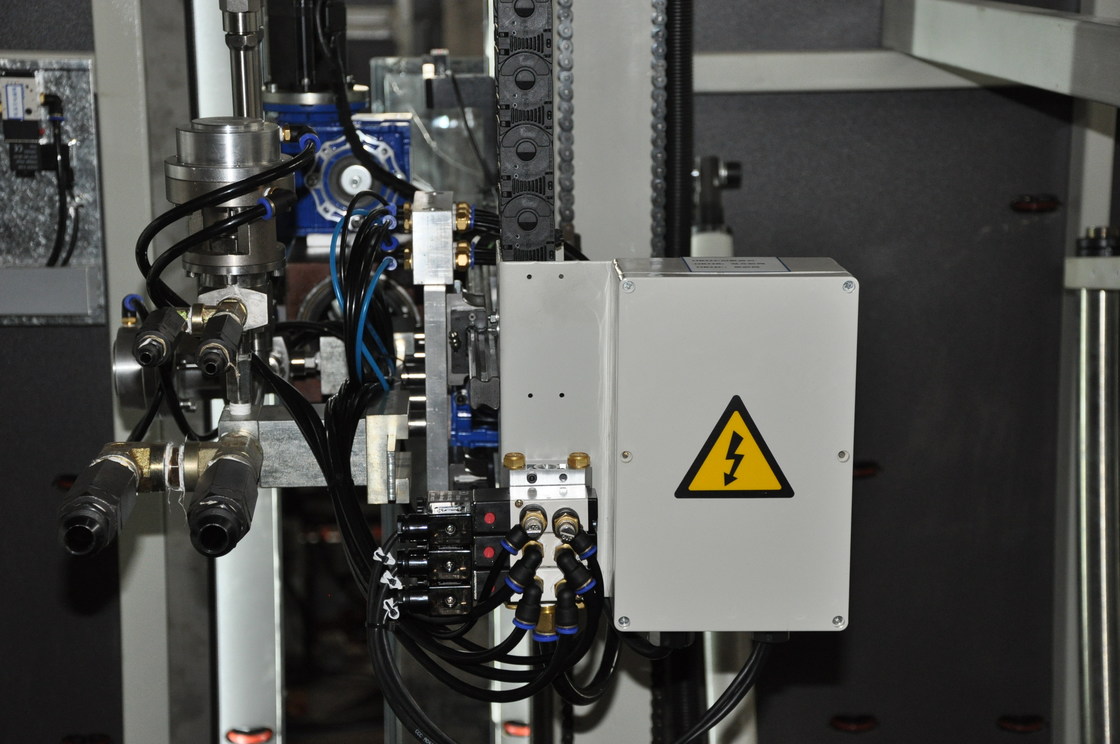

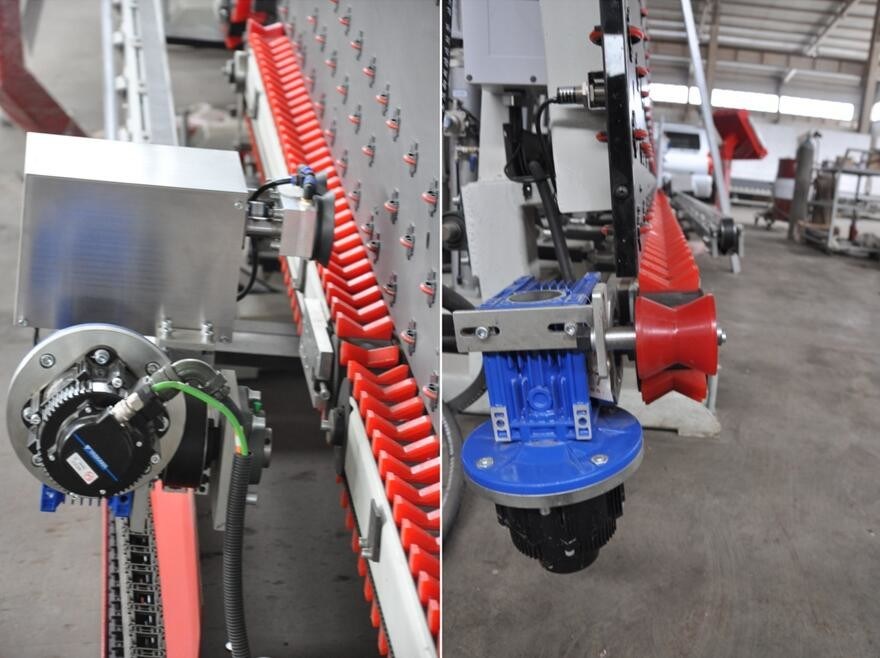

Detail pictures
